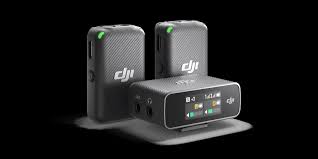

DJI Mic
The DJI Mic is a compact, lightweight, and powerful wireless microphone system that delivers exceptional sound quality at distances of up to 250 m. The transmitter provides clear, professional-level recording of vocals, ambient sounds, or musical instruments. With built-in storage, DJI Mic can be used to capture primary or backup audio during recording. Switch on, connect, and record crystal-clear audio on the go.
Product features
- All-In-One Storage, Ready for Use
DJI Mic is ready for use right out of the case. The transmitters and receiver are linked, charged, and securely stored in the charging case with accessories. The all-in-one design makes it easy for carrying and instant use with batteries fully charged.
- Dual-Channel Recording
DJI Mic comes with two transmitters, each with built-in microphones. Both transmitters support omnidirectional audio, making them ideal for multi-person interviews and small studio operations.- High-Quality Audio
DJI Mic allows you to record high-fidelity, professional audio by accurately reproducing tone across a wider frequency range. Recordings can be made separately via each channel, or the two channels can be combined for flexibility in post-production. - Built-in Touchscreen and Onboard Memory
The receiver’s touchscreen display gives you easy access to channel selection, input/output settings, and other essential operations. Both transmitters come with 14 hours of built-in storage to prevent audio frame drop, loss, and other issues.
- High-Quality Audio
- 250m (820 ft.) Stable Transmission
Cable free, hassle free. Enjoy unlimited creativity empowered by stable wireless transmission. Up to 250m (820 ft.) audio transmission range is supported in open, unobstructed environments without interference, meeting the needs of normal scenarios like live streaming, studios, and outdoor recording.- 250m Transmission Range
Using DJI’s latest encryption technology, DJI Mic is capable of recording crisp audio at distances of up to 250 meters. - Wireless Convenience
The entire DJI Mic system is wirelessly connected via a stable 2.4GHz frequency band, which allows you to move with complete freedom as you record your adventure. - Powerful Anti-Interference
The optimized wireless transmission system ensures a stable stream of audio, even in areas such as train stations, shopping malls, and offices.
- 250m Transmission Range
- Supports a Convenient Magnetic Design
Conveniently attach a transmitter to whatever you’re wearing via the integrated back clip or by using the clip magnets. Weighing approximately 30 grams (1 oz), wearing the transmitter is comfortable and seamless.
- Vastly Compatible
Different devices mean different input adapters, and DJI Mic covers them all. The receiver has USB-C, Lightning, and 3.5mm TRS ports, making it compatible with mainstream smartphones, cameras, and laptops.
- 15-Hour Battery
With the provided charging case, spend less time worrying about battery level. The receiver and transmitters can be charged in the case to reach up to 15 hours of operating time for unlimited creation.- Ultra-Long Battery Life
Looking for a system that can keep up with your content needs? Get a full day of audio recording with DJI Mic. Enjoy 5.5 hours of battery life from the transmitters, 5 hours from the receiver, and up to 15 hours with the charging case.
- Lightning-Fast Pairing
Both the transmitters and the receiver will automatically pair as soon as you place them in the charging case. Simply complete the initial setup and be ready to record exceptional audio in seconds.
- Ultra-Long Battery Life
- Rich Functionality
- Safety Track
A secondary audio track is recorded as a backup with a volume of -6 dB. This helps to safeguard your audio should the loss of sound be caused by problems such as distortion or clipping. - Multi-level Gain Control
Adjust input and output sensitivity between -12dB ~ 12dB and find the perfect setting for your surrounding. - Microphone Windscreen
Effectively suppresses wind and noisy environments while still recording clear sound.
- Safety Track
Specs
- DJI Mic transmitter
| Model | AST01 |
| Dimensions | 47.32×30.43×20.01 mm |
| Weight | 30 g |
| Wireless Mode | GFSK 1 Mbps and 2 Mbps |
| Equivalent Isotropic Radiated Power (EIRP) | <20 dBm |
| Operating Frequency | 2400-2483.5 MHz |
| Battery Type | LiPo 1S |
| Battery Capacity | 320 mAh |
| Battery Energy | 1.23 Wh |
| Battery Voltage | 3.85 V |
| Charging Temperature | 5 to 45° C (41° to 113° F) |
| Operating Temperature | -10° to 45° C (14° to 113° F) |
| Charging Time | 70 mins |
| Operating Time | 5.5 hours |
- DJI Mic Receiver
| Model | ASR01 |
| Dimensions | 47.44×32.21×17.35 mm |
| Weight | 24.9 g |
| Wireless Mode | GFSK 1 Mbps and 2 Mbps |
| Equivalent Isotropic Radiated Power (EIRP) | <20 dBm |
| Operating Frequency | 2400-2483.5 MHz |
| Battery Type | LiPo 1S |
| Battery Capacity | 320 mAh |
| Battery Energy | 1.23 Wh |
| Battery Voltage | 3.85 V |
| Charging Temperature | 5 to 45° C (41° to 113° F) |
| Operating Temperature | -10° to 45° C (14° to 113° F) |
| Charging Time | 70 mins |
| Operating Time | 5 hours |
- Charging case
| Model | ASB01 |
| Dimensions | 103.06×61.87×41.50 mm |
| Weight | 162.2 g |
| Battery Type | LiPo 1S |
| Battery Capacity | 2600 mAh |
| Battery Energy | 10 Wh |
| Battery Voltage | 3.87 V |
| Charging Temperature | 5 to 45° C (41° to 113° F) |
| Operating Temperature | -10° to 45° C (14° to 113° F) |
| Charging Time | 2 hours and 40 mins |
| Operating Time | Fully charge three devices simultaneously 1.8 times |
- General
| Microphone Directions | All Directions |
| Frequency Response | Low Cut Off: 50 Hz – 20 kHz Low Cut On: 150 Hz – 20 kHz |
| Max Sound Pressure Level (SPL) | 114 dB SPL |
| Max Input Level (3.5 mm) | -17 dBV (THD < 0.1%) |
| Equivalent Noise | 23 dBA |
| Monitor Interface Output Power | Max Output 22mW@1kHz, 32Ω |
| Max Transmission Distance | 250 m (FCC) 160 m (CE) |
